Low Cost arrier Security Seals

  • One piece assembly
  • Easy to apply by simply pushing metal bolt hasp into plastic body.
  • Combination of plastic body and metal bolt hasp provides high strength and durability.
  • Available in corrosion resistant galvanised Steel botl Hasp.
  • The solid bolt hasp must e cut to remove.
  • The versatility of the posibolt Seal makes it ideal for many widely differing applications
  • Plastic body
  • Material : Durable, High Strength Engineering plastic.


RECOMMENDED APPLICATIONS
  • RAIL, ROAD, SHIP,AIR CONTAINERS
  • TRUCKS
  • WAREHOUSES
  • CASH-IN-TRANSIT
  • AND MANY MORE TO YOUR IMAGINATION





SAFCON

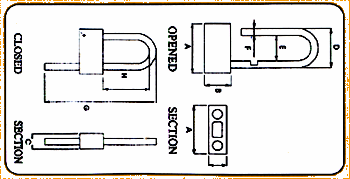

Part No.		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm
PH-01 32 16 11 25.5 16.5 4.5 75 31
Max. Print Area : 25x12 mm

CUSTOMISATION
STANDARD COLOURS NAME/LOGO
(Printed) 		NAME/LOGO
(High Rise Molded) 		SERIAL NUMBERING BAR CODING
Red,Yellow,lue,Green,Orange,Other Colours On Quantity Orders.

Min.Qty.
10000 Nos.

Min.Qty.
50000 Nos.

Min. Qty
5000 Nos.

Min. Qty
50000 Nos.

Applications shown are typical, but any range of seals from SAFCON may suit your particular need
